Gym skill
The AEA gym skill demonstrates how a custom Reinforcement Learning agent blueprint, that uses OpenAI's gym library, may be embedded into an AEA skill and connection.
Discussion
The gym skills demonstrate how to wrap a Reinforcement Learning agent blueprint in a skill.
The example decouples the RL agent from the gym.Env allowing them to run in separate execution environments, potentially owned by different entities.
Preparation instructions
Dependencies
Follow the Preliminaries and Installation sections from the AEA quick start.
Demo instructions
Create the AEA
First, fetch the gym AEA:
aea fetch open_aea/gym_aea:0.1.0:bafybeiay5ek63umygmchj7ouvnjir6u3gmr3smhybv2mg27hrbqhcmddsu --remote
cd gym_aea
aea install
Alternatively, create from scratch.
### Create the AEA In the root directory, create the gym AEA and enter the project.
aea create my_gym_aea
cd my_gym_aea
aea add skill fetchai/gym:0.20.0:bafybeiclutzxcpoxvbs4ejqtwpnkymjtp5wbny7qhtvlzxi5bthnjrav2a --remote
aea config set agent.default_connection fetchai/gym:0.19.0
aea install
Set up the training environment
Copy the gym environment to the AEA directory
mkdir gyms
cp -a ../examples/gym_ex/gyms/. gyms/
Update the connection configuration
aea config set vendor.fetchai.connections.gym.config.env 'gyms.env.BanditNArmedRandom'
Create and add a private key
aea generate-key ethereum
aea add-key ethereum
Run the AEA with the gym connection
aea run

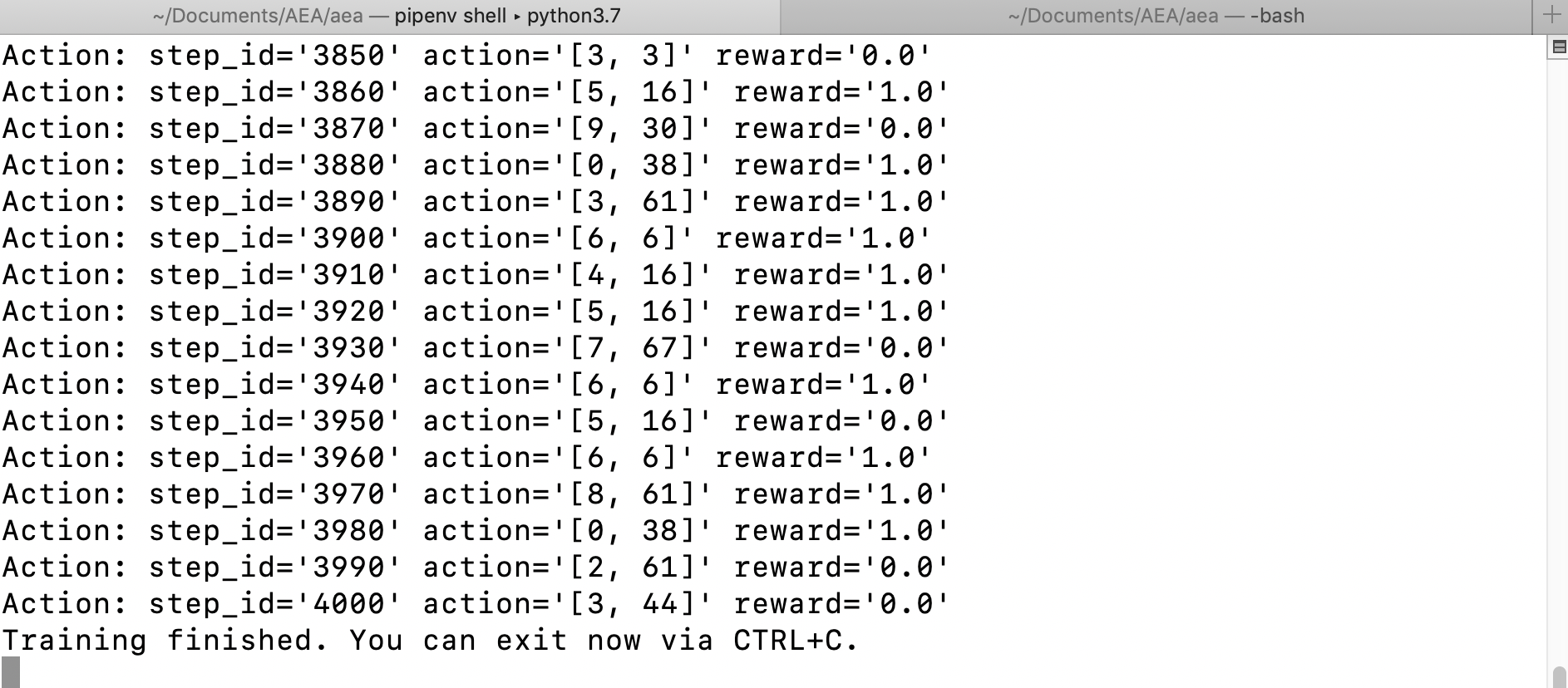

You will see the gym training logs.
Delete the AEA
When you're done, you can go up a level and delete the AEA.
cd ..
aea delete my_gym_aea
Communication
This diagram shows the communication between the AEA and the gym environment
Skill Architecture
The skill consists of two core components: GymHandler and GymTask.
In the setup method of the GymHandler the GymTask is initialized, as well as its setup and execute methods called. The handler, which is registered against the GymMessage.protocol_id then filters for messages of that protocol with the performative GymMessage.Performative.PERCEPT. These messages are passed to the proxy_env_queue of the task.
The GymTask is responsible for training the RL agent. In particular, MyRLAgent is initialized and trained against ProxyEnv. The ProxyEnv instantiates a gym.Env class and therefore implements its API. This means the proxy environment is compatible with any gym compatible RL agent. However, unlike other environments it only acts as a proxy and does not implement an environment of its own. It allows for the decoupling of the process environment of the gym.env from the process environment of the RL agent. The actual gym.env against which the agent is trained is wrapped by the gym connection. The proxy environment and gym connection communicate via a protocol, the gym protocol. Note, it would trivially be possible to implement the gym environment in another AEA; this way one AEA could provide gym environments as a service. Naturally, the overhead created by the introduction of the extra layers causes a higher latency when training the RL agent.
In this particular skill, which chiefly serves for demonstration purposes, we implement a very basic RL agent. The agent trains a model of price of n goods: it aims to discover the most likely price of each good. To this end, the agent randomly selects one of the n goods on each training step and then chooses as an action the price which it deems is most likely accepted. Each good is represented by an id and the possible price range [1,100] divided into 100 integer bins. For each price bin, a PriceBandit is created which models the likelihood of this price. In particular, a price bandit maintains a beta distribution. The beta distribution is initialized to the uniform distribution. Each time the price associated with a given PriceBandit is accepted or rejected the distribution maintained by the PriceBandit is updated. For each good, the agent can therefore over time learn which price is most likely.
The illustration shows how the RL agent only interacts with the proxy environment by sending it action (A) and receiving observation (O), reward (R), done (D) and info (I).
